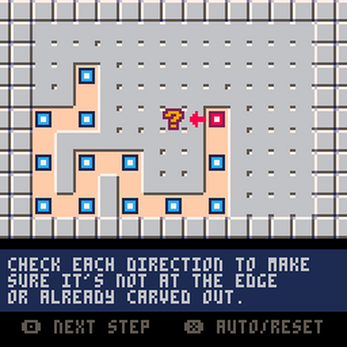

PICO-8: Maze Algorithm Tutorial
Keys
Z - move to the next step
X - switch on/off auto or reset the maze.
Code
Below is a heavily-commented implementation of the actual algorithm used in the tutorial above. It's called the Growing Tree Maze Algorithm if you'd like to learn more about it.
Note: If you'd like to implement this code, you need to draw a wall in sprite #001 and a floor in sprite #002.
function _init() w,h=13,13 --must be odd numbers! gen() --make a maze! end function _update() if (btnp(5)) gen() --reset end function _draw() cls() --center the maze and draw it center_x=(128-(w+2)*8)/2 map(0,0,center_x,0) print("press \151 to reset",30,122,5) end function gen() m={} --empty maze of all walls for i=1,w do --go across m[i]={} for j=1,h do --go down m[i][j]=true --true=wall end end c={} --cells we're tracking --start in a random spot add_c(rndbi(0,(w-1)/2)*2+1,rndbi(1,(h-1)/2)*2+1) m[c[1].x][c[1].y]=false carve() set_map_tiles() end function carve() --easy math to calculate --neighboring cells and --cells opposite the one --we're working with dx,dy,op={-2,2,0,0},{0,0,-2,2},{2,-2,2,-2} --if the cell list isn't empty while (#c>0) do cc=c[#c] --get the last cell --get a random list of dirs rd=get_rnd_dirs() --check each direction for d in all(rd) do --get the cell in that dir nx,ny=cc.x+dx[d],cc.y+dy[d] --if that cell is uncarved --and not an edge wall if (nx>=1 and nx<=w and ny>=1 and ny<=h and m[nx][ny]) then --carve a path in that dir m[cc.x+(dx[d]/2)][cc.y+(dy[d]/2)]=false m[nx][ny]=false --new cell goes on the list add_c(nx,ny) --if we found and carved a --new path, we're good. no --need to check other dirs break end --if we checked that dir --and couldn't use that dir, --take the dir off the list --and check the next dir del(rd,d) end --if we checked all dirs and --couldn't find an open path --to carve, we're done with --that cell if (#rd<1) then del(c,cc) end end end --add a cell to the list of --cells we're working with function add_c(x,y) local new_c={} new_c.x=x new_c.y=y add(c,new_c) end --get a random \139\145\148\131 list function get_rnd_dirs() local dirs={1,2,3,4} local rnd_dirs={} for i=1,4 do local rnd_dir=rndbi(1,#dirs) add(rnd_dirs,dirs[rnd_dir]) del(dirs,dirs[rnd_dir]) end return rnd_dirs end function set_map_tiles() --maze border for i=0,w+1 do --top/bottom mset(i,0,1) mset(i,h+1,1) end for j=1,h do --left/right mset(0,j,1) mset(w+1,j,1) end --maze tiles for i=1,w do for j=1,h do if (m[i][j]) then mset(i,j,1) else mset(i,j,2) end --simpler version using a --ternary operator: --mset(i,j,m[i][j] and 1 or 2) end end end --random integer (h inclusive) function rndbi(l,h) return flr(rnd(h+1-l))+l end
Status | Released |
Category | Other |
Platforms | HTML5 |
Rating | Rated 5.0 out of 5 stars (4 total ratings) |
Author | MBoffin (Dylan Bennett) |
Genre | Educational |
Made with | PICO-8 |
Tags | PICO-8 |
