PICO-8: Simple Animation Explanation
Keys
Z - Next Step
X - Auto/Manual
Code

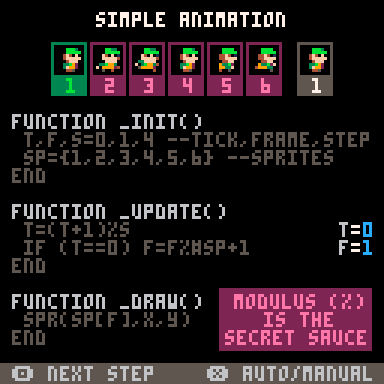

This is the code displayed in the tutorial. Feel free to copy/paste it for your own use.
Note: You can use as many or as few sprites as you want in the sp
table, and in any order you want.
function _init() t,f,s=0,1,4 --tick,frame,step sp={1,2,3,4,5,6} --sprites end function _update() t=(t+1)%s --tick fwd if (t==0) f=f%#sp+1 end function _draw() spr(sp[f],x,y) end
Here's another implementation that assumes the tick
, frame
, and step
variables and the sp
table are all part of another table. (In this case, p
, for player.)
function _init() p={} --player p.t,p.f,p.s=0,1,4 --tick,frame,step p.sp={1,2,3,4,5,6} --sprites end function _update() animate(p) end function _draw() spr(p.sp[p.f],x,y) end --animate an object function animate(o) o.t=(o.t+1)%o.s --tick fwd if (o.t==0) o.f=o.f%#o.sp+1 end
Status | Released |
Platforms | HTML5 |
Rating | Rated 5.0 out of 5 stars (11 total ratings) |
Author | MBoffin (Dylan Bennett) |
Genre | Simulation, Educational |
Made with | PICO-8 |
Tags | PICO-8 |
Development log
- Cleaning up animation frame countingJul 03, 2017
Comments
Log in with itch.io to leave a comment.
I was struggling to animate 16x16 sprites until I used your code.
Massive Thanks!
Oh, hello! How to you animate 16x16 sprites? im trynig putting a "+1" on the spr function for wide and hight but prints more sprites on the spritesheet! (glitchy)
spr(p.sp[p.f],x,y,p.sp[p.f]+1,p.sp[p.f]+1)
You would just use spr(p.sp[p.f], x, y, 2, 2) where the 2,2 indicates the width and height (in units of 8x8 sprites) of the sprite you want to draw.
thank you so much!
Thank you for this tutorial!
Also, there is a syntax error in line 3 (a dot before
p.f
).Very good explanation, thank you!
I think this could be made a bit smaller by making use of FLR() to divide the modulos. Since it's one-sprite, maybe don't need 2-variables to keep track of it ? Maybe ...
Exactly what I needed! Thank you very much!
Modulus is totally the secret sauce. You just reduced my 2 hour struggle to figure that out into a handful of code. Thanks!
this is excellent , and general purpose. thank you!
